May 22, 2017

"The Journey" A coffee table done with walnut, carbon fiber, aluminum, pewter, and Gemstones

The top is two slabs of walnut that were glued together. A computer driven router was used to level the surface and to create the "river." The course of the river was painstakingly created by hand, following the details of the wood grain. This pattern was transferred to Adobe Illustrator and a computer driven router was used to actually cut the shape.

The support frame was made from aluminum pieces that were cut with a water jet CNC machine using garnet dust and water under high pressure. The pieces were then TIG welded together. It took awhile to get the aluminum Tig welding down. Everything must be stupidly clean and without any type of grease, dirt or metal contaminant.

The legs were cut from plywood using a computer driven router. Sculpting was done using epoxy/clay then covered with carbon fiber using a technique I developed to allow carbon fiber to adhere to complex curves without wrinkling.

The pewter was melted, hand poured, and scraped.

The stones are a mix of hand crushed Kingman Mine Turquoise, Chrysachola, and Malachite

The finish is marine varnish that I mixed with additional resins to create a "short oil" mixture that would cure hard enough to buff out

The surface was created by sequential sanding down to 5,000 grit and then an electric polisher was used apply rubbing and polishing compound.

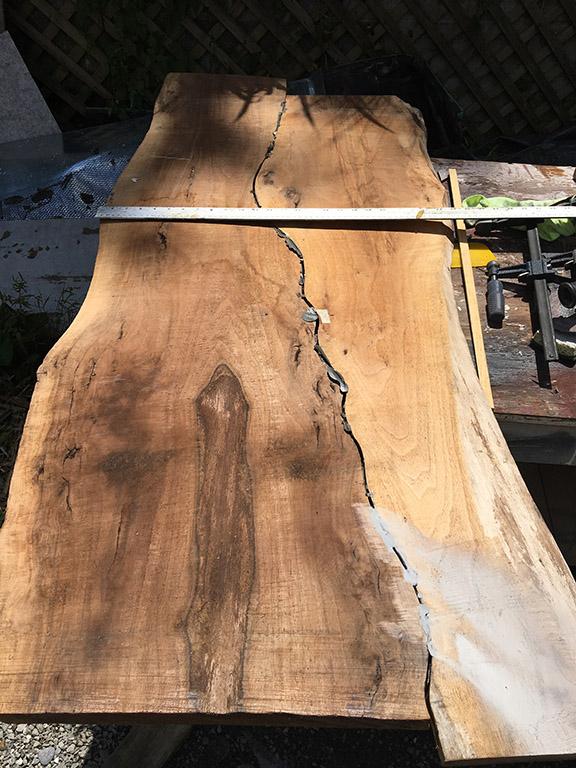

The two walnut slabs laid side by side on sawhorses, a straightedge across them

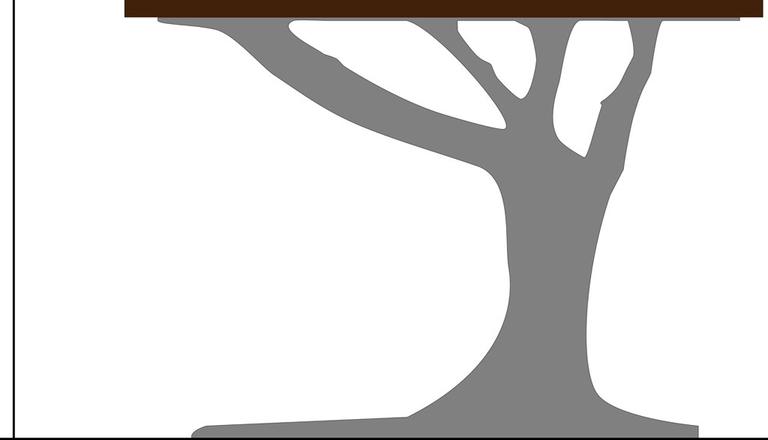

A drawing of the tree-shaped table base under the walnut top

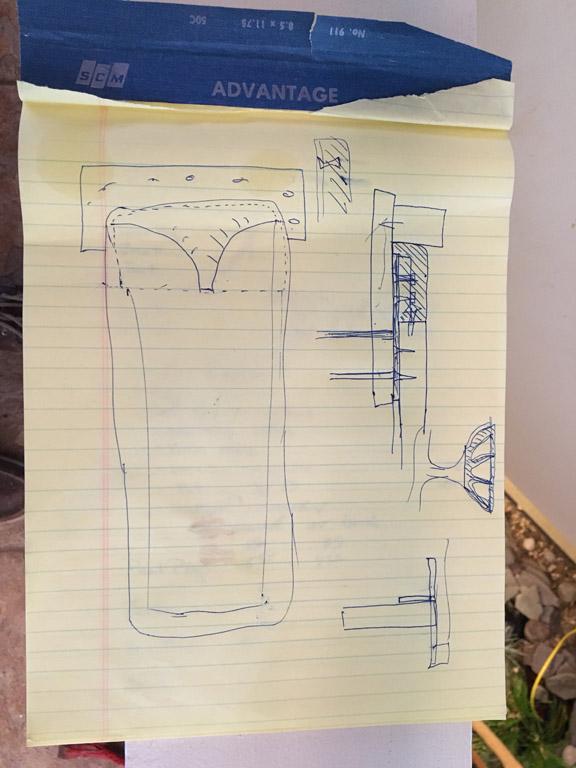

Hand sketches of the table and its leg joints on a yellow legal pad
In the welding shop, ready to TIG weld the aluminum frame pieces

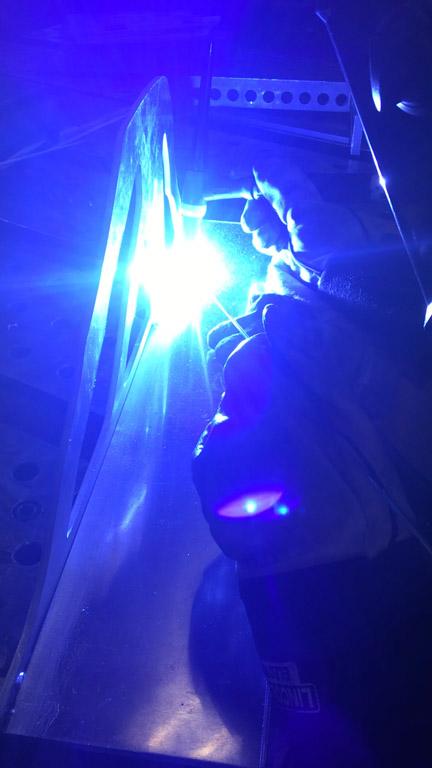

A TIG weld glowing blue on the aluminum frame

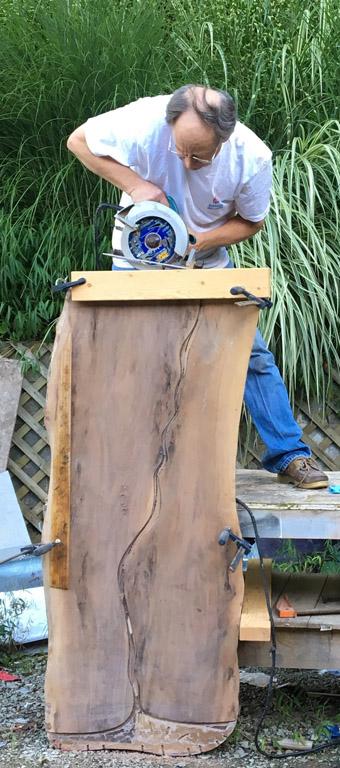

Cutting along the walnut slab with a circular saw and a clamped guide board

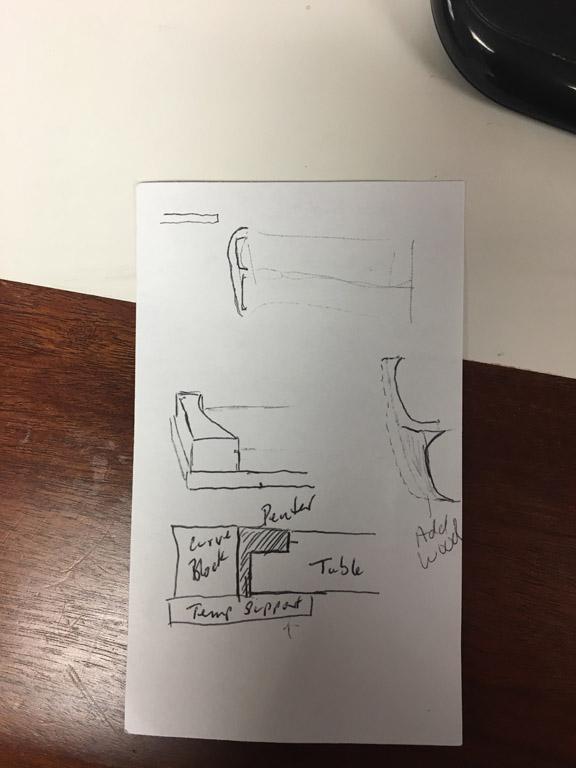

A pencil sketch of how the pewter edge is poured against a temporary support block

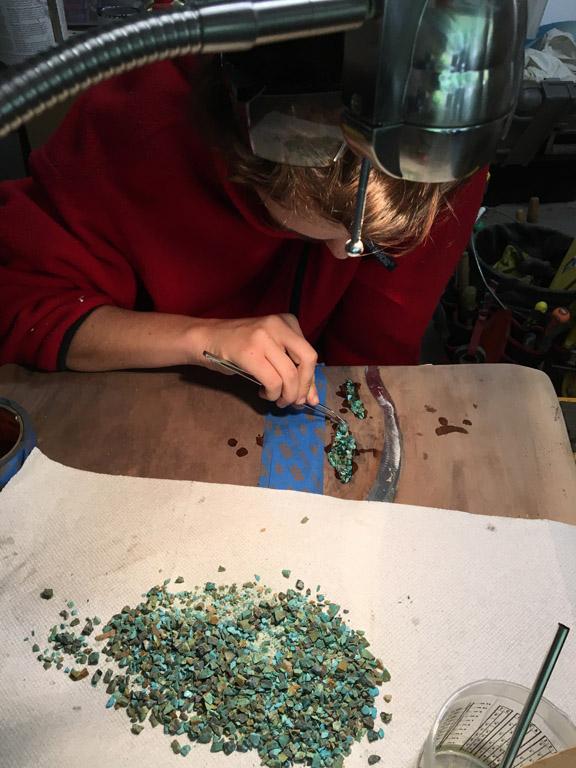

Setting crushed turquoise into the walnut with tweezers under a magnifier lamp

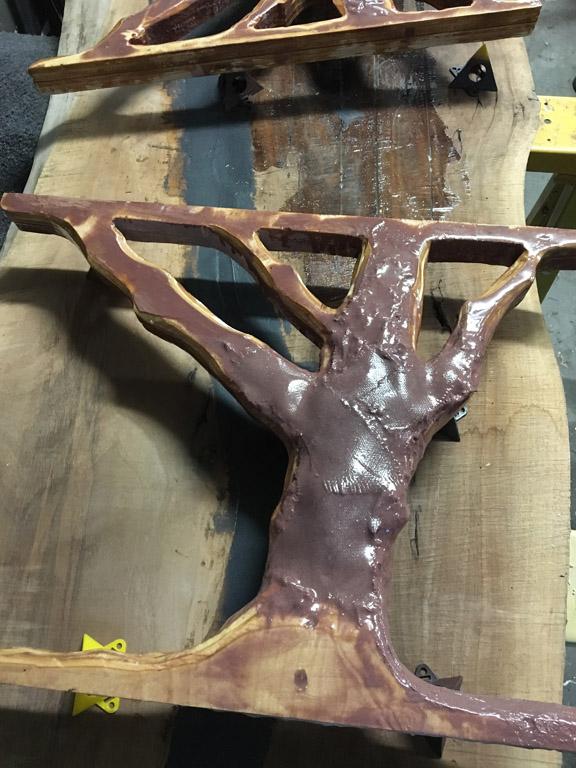

The two plywood tree legs, sculpted with epoxy and clay, resting on the walnut top

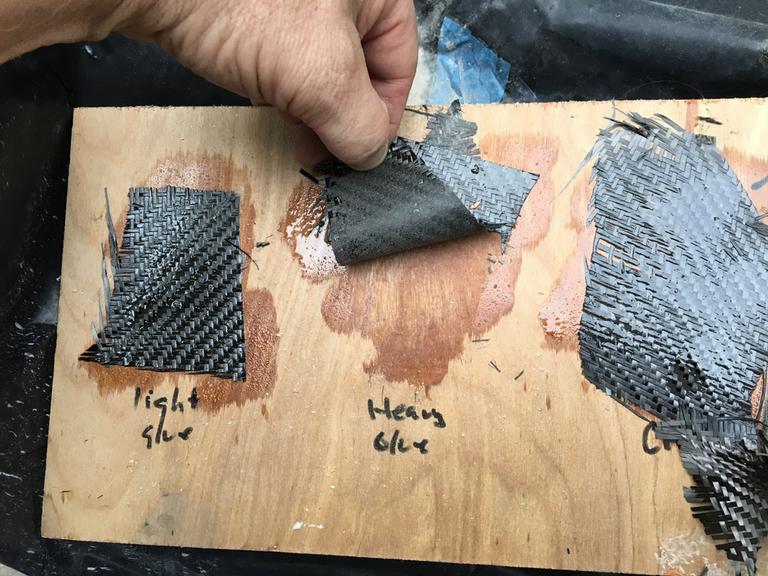

Peeling up carbon fiber test patches on plywood, marked light glue and heavy glue

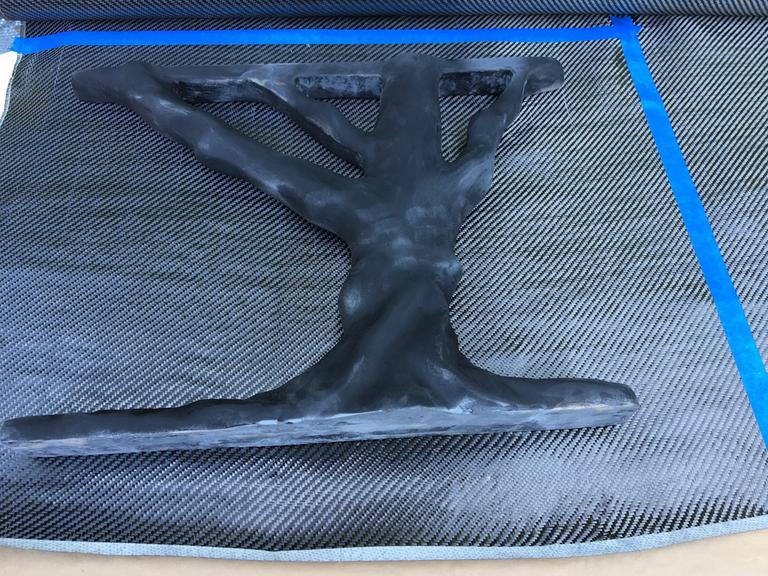

A sculpted tree leg laid on a sheet of carbon fiber cloth, ready to be covered

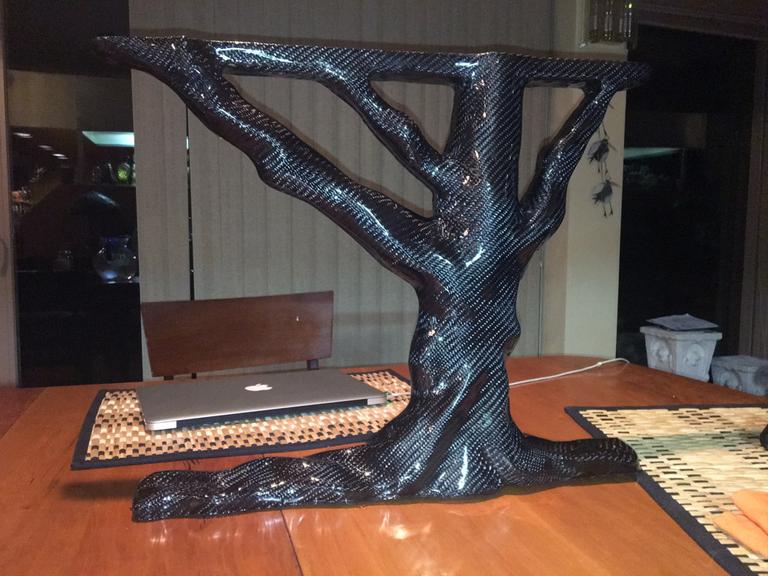

A finished tree leg covered in glossy carbon fiber, standing on the dining table

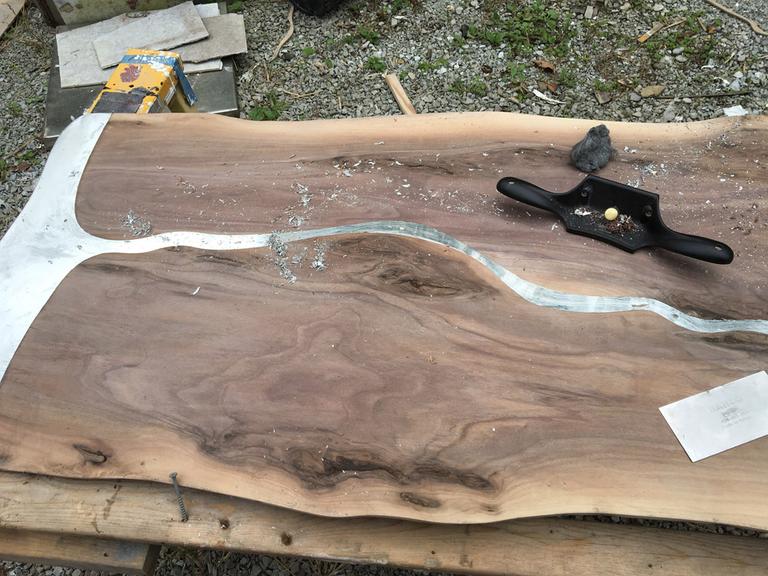

The poured pewter river and edge scraped flush in the walnut top, a two-handled scraper beside it

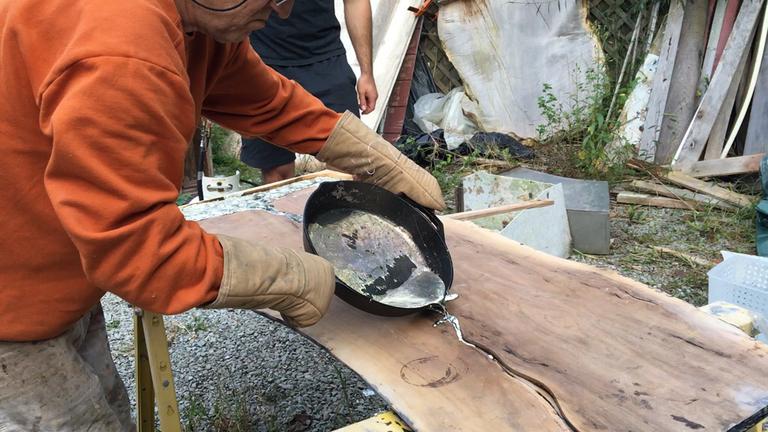

Pouring melted pewter from a cast-iron skillet into the river channel in the walnut

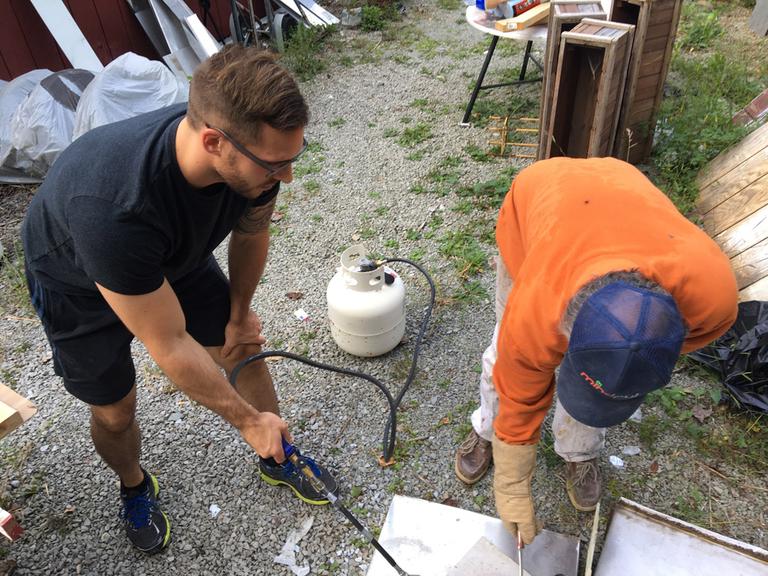

Melting pewter scrap with a propane torch in the gravel yard

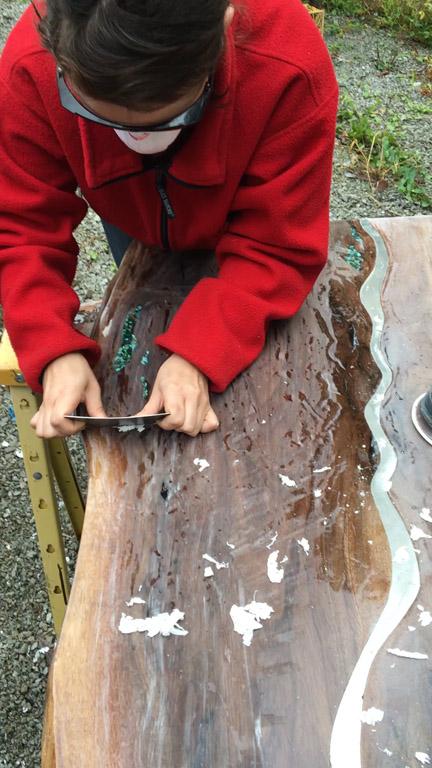

Scraping the pewter and stone inlays flush with a card scraper

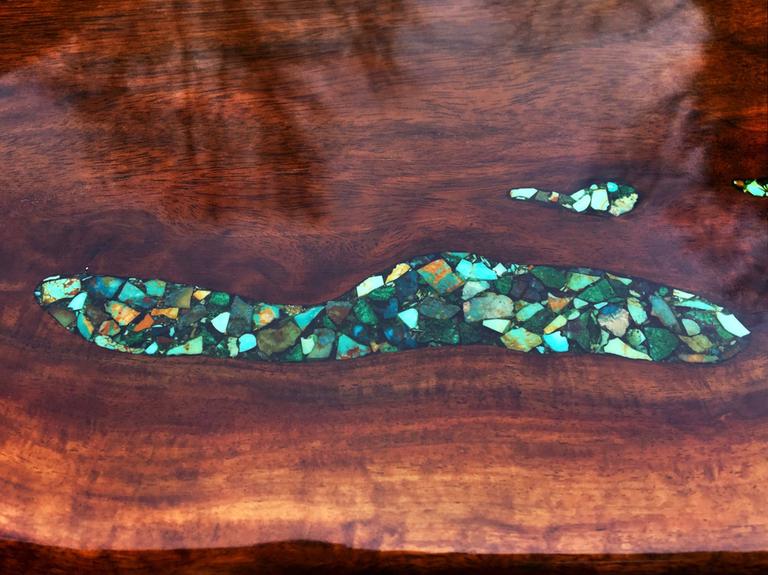

Close-up of crushed turquoise, chrysocolla and malachite set into the polished walnut

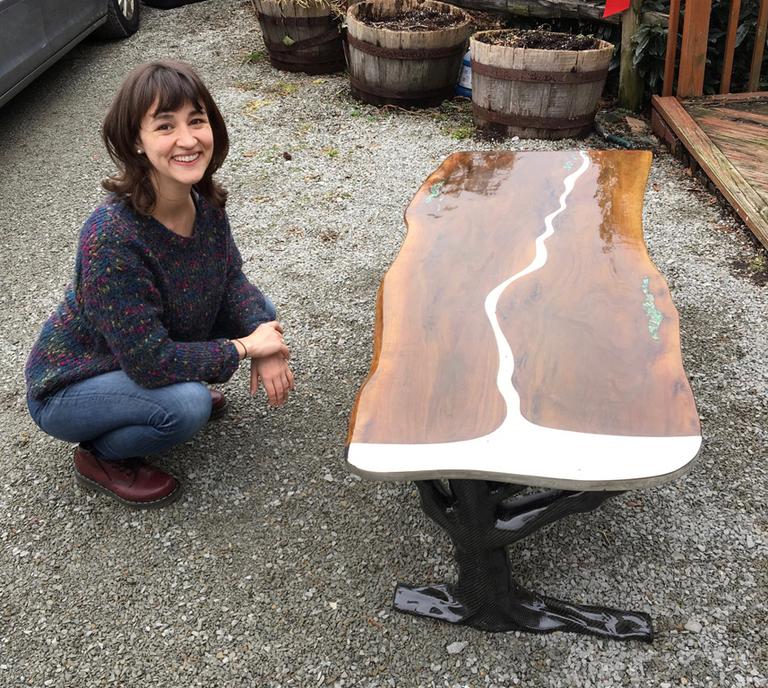

The finished table in the driveway, its pewter river running down the walnut top on the carbon fiber tree base

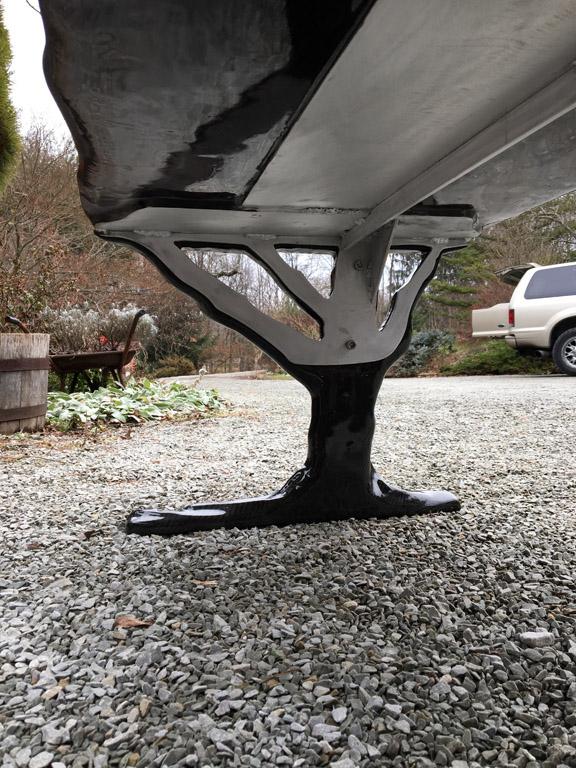

Low view of the carbon fiber tree base under the table, on the gravel drive
